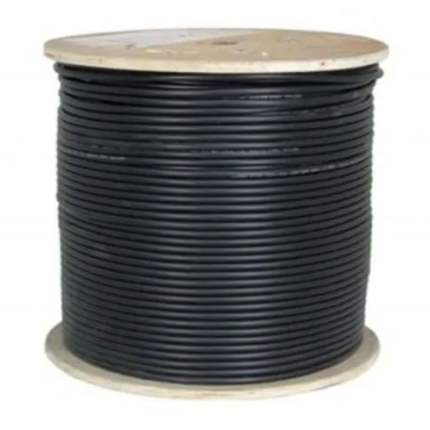

Giganet Category 6A Solid F/UTP LDPE Cable – 305m drum Outdoor Shielded Cable

The Giganet Category 6A F/UTP ‐ foil screened ‐ cables are manufactured and tested to the ANSI/TIA-568.2-D, ISO/IEC11801-1, and EN 50173-1 Category 6A specifications. Each cable consists of 8 color-coded 23AWG polyethylene insulated, solid bare copper, conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs are then formed around a central ‘X’ shaped polyethylene filler. This filler assists in maintaining and enhancing the cable’s performance. Clear Mylar tape is then wrapped around this unit and a foil tape screen with 24AWG drain wire applied. The foil screen provides protection from Electromagnetic Interference (EMI) which can occur when data is transmitted at high frequencies.

• Overall Foil Tape Screen
• LDPE Outer Sheath
• Outdoor type
• Supplied various reel sizes
• UV and Moisture Resistant Polyethylene Outer Sheath
• Central ‘X’ filler
• 23AWG {0.575mm (0.023 in.)} conductor
• 25 Year System Warranty
