Non- touch Exit & Emergency Button – DS-K7P03


Non- touch Exit & Emergency Button – DS-K7P03

  • Dimension (L x W x H) 86 x 86 x 25.7mm (3.39″ x 3.39 x 1.01″)
  • Input voltage: 12V DC
  • Working current: 40 mA (standby), 70mA (working)
  • Current rating: 1 A@30 VDC
  • Output contact: NO/NC/COM contact
  • Panel: Stainless steel

KSh 1,900.00 plus 16% VAT

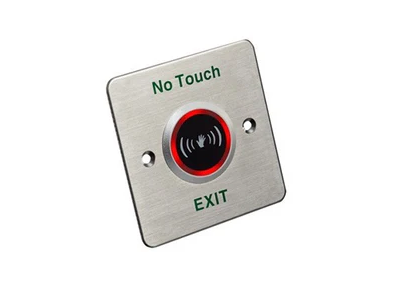

Non- touch Exit & Emergency Button – DS-K7P03

The Hikvision DS-K7P03  is a touch free door exit & emergency button for access controlled doorways where non contact is important, such as schools, laboratories and hospitals.

The contactless sensor is embedded in a stainless steel face plate and is illuminated with white/green/red LED indication lights and the low profile casing is ideal for narrow doorway.

The relay opening times can be adjusted between 0.5 to 20 seconds so the DS-K7P03 can be mounted further away from the door than conventional door exit buttons.

Features:

  • Dimension (L x W x H) 86 x 86 x 25.7mm (3.39″ x 3.39 x 1.01″)
  • Input voltage: 12V DC
  • Working current: 40 mA (standby), 70mA (working)
  • Current rating: 1 A@30 VDC
  • Output contact: NO/NC/COM contact
  • Panel: Stainless steel
  • Aging test: Already passed 1 million times aging test
  • Suitable doors: All kinds of narrow doorframes
  • Working Temperature: -20ºC to 50ºC (-4ºF to 122ºF)
  • Working humidity: 0 to 95% (relative humidity)
  • Detection range (adjustable): 40mm to 120mm (1.57 to 4.72″)
  • Time delay: 1 to 25s (adjustable)
  • LED indicator status: Green/red LED indicates working/standby
  • Product weight: 0.2kg (0.44lb)
