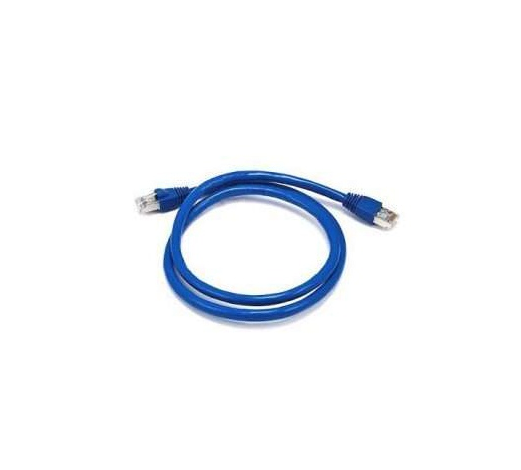

10G Siemon Cat 6A 3M patch cord

Buy 10G Siemon Cat 6A 3M patch cord exceed bandwidth of Category 7A/ Class FA specifications when combined with the TERA outlet. TERA delivers up to 1.2 GHz of bandwidth per pair, providing.

Siemon Cat 6A 3M patch cord extra bandwidth for demanding applications like 10GBASE-T and Broadband Video. Facilitated by 1- and 2- pair patch cords, TERAs extended performance also supports cable sharing  the simultaneous convergence of video, voice data and remote powering onto a single 4-pair cable and outlet.

Siemon Cat 6A 10G 3M patch cord TERA CATV baluns provide the optimum solution for the transmission of TV or CATV signals over structured cabling systems that were historically limited to voice and data transmission. Siemon Cat 6A 3M patch cord convert the unbalanced TV signals designed for coaxial cabling (75 ? impedance) to balanced signals (100 ? impedance) as required for transmission over twisted pair (balanced) cabling.

10G Siemon 3M patch cord TERA CATV adapters are specified and usable to 862 MHz. The 1-pair TERA to PAL and TERA to “F” patch cords utilize an integrated balun. The 1-pair shielded. Siemon Cat 6A 3M patch cord TERA to shielded RJ45 patch cord allows connection to third-party RJ45 baluns.

Siemon Cat 6A 3M patch cord specification

CORD ASSEMBLY Compatibility Category 6A, 6 and 5e RJ 45 outlets Wiring T568A/B as specified by part # Marking P/N, length, performance level Operating Temperature -20 to 75 °C (-4 to 167 °F) Remote Powering PoE Type 1, Type 2, UPoE, PoH Green Features RoHS, lead-free, halogen-free, PVC free Plastic Materials Flame retardant thermoplastic CABLE Wire Size (Nominal) 28 AWG 7×36 Stranded bare copper Construction S/FTP Cable O.D. (Nominal) 5.5 mm (0.22 in.) Jacket Type CM/LSOH Bend Radius 22 mm (0.87 in.) PLUG Number of Plug Insertion Cycles 2500 Min.

Plug Retention Force 50N (11.24 lbf) Contact Resistance 20 m? Input to Output DC Resistance 200 m? (signal conductors) 100 m? (shield) Insulation Resistance 500 M? Min.

Dielectric Withstand Voltage 1000 V DC or AC peak (contact to contact) 1500 V DC or AC peak (contact to shield) Current Rating @ 25 C (77 F) 1.5 A Flammability Rating UL 94 – V0 Contact Materials Copper alloy with contact plating of 50 micro-inches gold or equivalent
