Specifications

Details
Product code	RB1100Dx4
Architecture	ARM 32bit
CPU	AL21400
CPU core count	4
CPU nominal frequency	1.4 GHz
Switch chip model	RTL8367
Dimensions	443 x 148 x 44 mm
RouterOS license	6
Operating System	RouterOS
Size of RAM	1 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200’000 hours at 25C
Tested ambient temperature	-40°C to 70°C
IPsec hardware acceleration	Yes

Powering

Details
Number of AC inputs	2
Number of DC inputs	2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage	-48, 20-57 V
Max power consumption	33 W
Max power consumption without attachments	25 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	20-57 V

Ethernet

Details
10/100/1000 Ethernet ports	13

Peripherals

Details
Extended storage	60GB M.2 SSD included
Memory card type	microSD
Memory Cards	1
SATA ports	2x SATA3
Serial console port	RS232
Number of M.2 slots	2

Other

Details
Current Monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP20

Brand

Mikrotik

Description

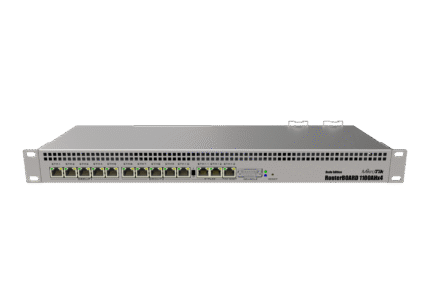

Mikrotik RB1100AHx4 rackmount router Dude Edition 1U 13x Gigabit Ethernet ports

Name: Mikrotik RB1100AHx4 rackmount router Dude Edition 1U 13x Gigabit Ethernet ports
Brand: Mikrotik
SKU: 15672
Availability: InStock

New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous Router BOARD device (up to 2.2Gbps with AES128).

Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.
