Mikrotik RB951Ui-2HnD Wireless Router

The Mikrotik RB951Ui-2HnD Wireless Router is a powerful and compact SOHO wireless access point and router designed for home and small office networks. With five Ethernet ports, 2.4GHz high-power Wi-Fi, and passive PoE output, it delivers reliable performance for users looking for an affordable, feature-rich solution.

Specifications

Details
Product code	RB951Ui-2HnD
Architecture	MIPSBE
CPU	AR9344
CPU core count	1
CPU nominal frequency	600 MHz
Dimensions	113x138x29mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	128 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 100’000 hours at 25C
Tested ambient temperature	-20C +60C

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2.5
Wireless 2.4 GHz chip model	AR9344
Wireless 2.4 GHz generation	Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports	5

Peripherals

Details
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Powering

Details
Number of DC inputs	2 (PoE-IN, DC jack)
DC jack input Voltage	8-30 V
Max power consumption	24 W
Max power consumption without attachments	7 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	8-30 V

PoE-out

Details
PoE-out ports	Ether5
PoE out	Passive PoE
Max out per port output (input 18-30 V)	500 mA
Max total out (A)	500 mA

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	IP20

Other

Details
Beeper	Yes

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	30	-96
54MBit/s	25	-80
MCS0	30	-96
MCS7	23	-78

Brand

Mikrotik

Description

Mikrotik RB951Ui-2HnD Wireless Router

The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 802.11b/g/n wireless AP with antennas built in.

It has a 600MHz CPU,128MB of RAM and PoE output function for port 5 – it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

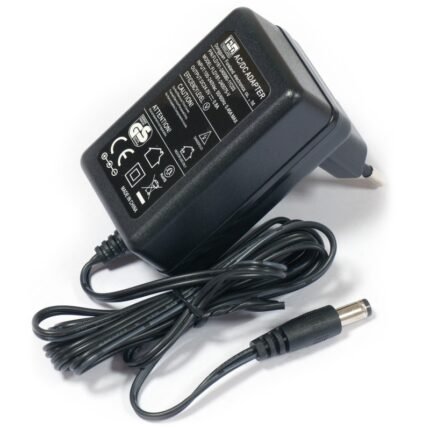

Package contains Router BOARD 951Ui-2HnD in a plastic case and power adapter.
