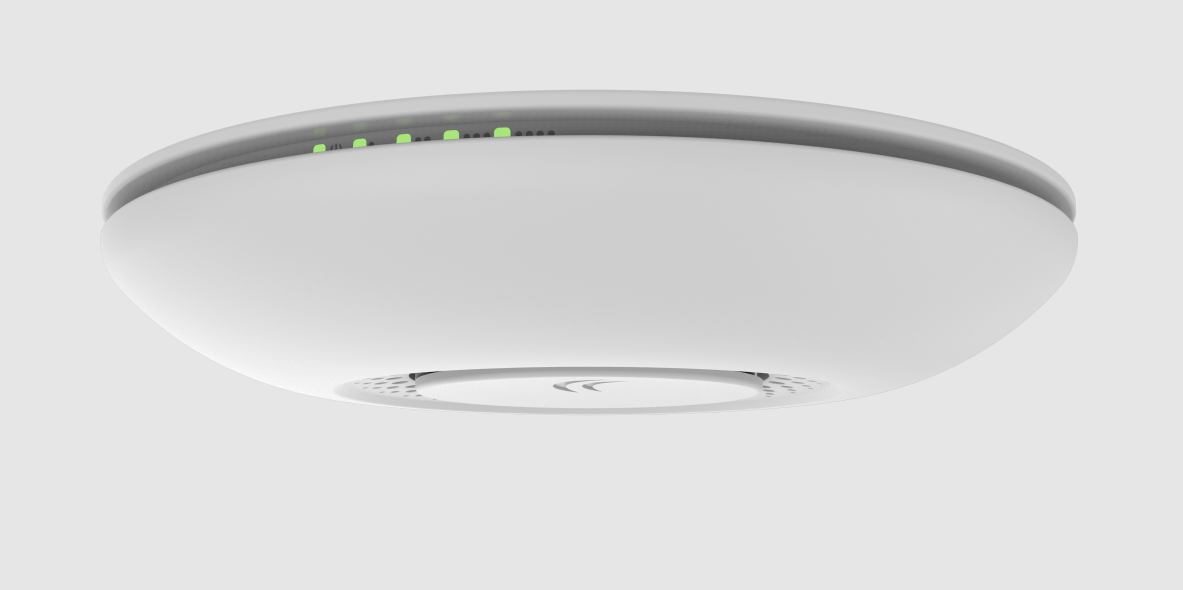

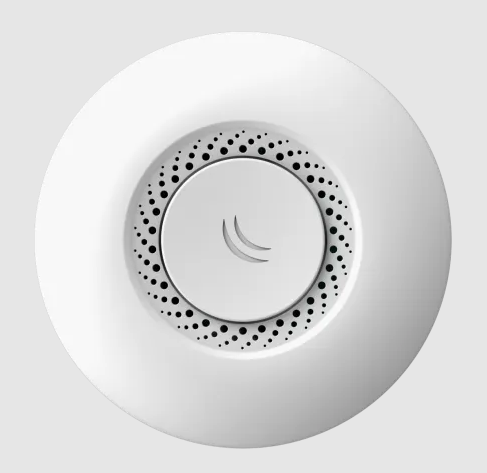

RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.
cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.
Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing Router BOARD device in your network. No need for a separate controller machine.
Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.
Specifications
| Details |
| Product code |
RBcAP2nD |
| Architecture |
MIPSBE |
| CPU |
QCA9533 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| Dimensions |
185mm diameter, 31mm height |
| RouterOS license |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 100’000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
| Suggested price |
$49.95 |
Wireless capabilities
| Details |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2 |
| Wireless 2.4 GHz chip model |
QCA9533 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
Ethernet
| Details |
| 10/100 Ethernet ports |
1 |
Powering
| Details |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
4 W |
| Cooling type |
Passive |
| PoE in |
802.3af/at |
| PoE in input Voltage |
11-57 V |
Certification & Approvals
| Details |
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
IP20 |
Other
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 1MBit/s |
22 |
-96 |
| 11MBit/s |
22 |
-89 |
| 6MBit/s |
20 |
-93 |
| 54MBit/s |
18 |
-74 |
| MCS0 |
20 |
-93 |
| MCS7 |
16 |
-71 |
