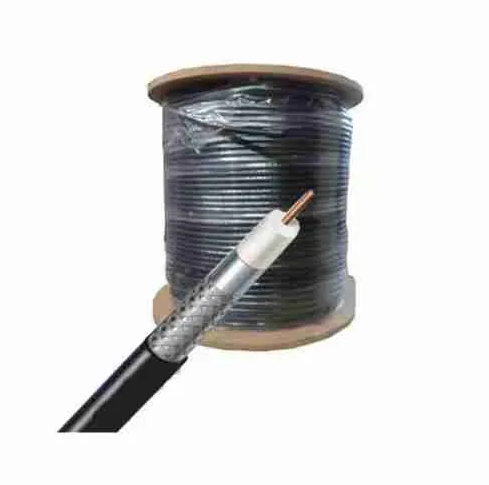

Rg59 cable With Power 300M Generic

An RG59 Cable with Power, typically used for CCTV (Closed Circuit Television) installations, is designed to carry both video signals and power over a single cable, making it convenient for surveillance camera installations. Here’s a description of an RG59 Cable with Power:

1. Coaxial Cable Design: The RG59 cable is designed with a coaxial construction, consisting of a central conductor, dielectric insulation, metallic shielding, and an outer insulating jacket. This design provides excellent protection against electromagnetic interference (EMI) and signal loss.
2. Dual Functionality: One of the key features of RG59 Cable with Power is its dual functionality. It is capable of transmitting both video signals and electrical power simultaneously over the same cable.
3. Applications: This type of cable is commonly used in CCTV systems to connect security cameras to DVRs (Digital Video Recorders) or NVRs (Network Video Recorders). It simplifies the installation process by allowing power and video signals to be delivered through a single cable run.
4. Coaxial Cable Impedance: RG59 cables typically have an impedance of 75 ohms, which is the standard impedance for video applications. This impedance matches the impedance of most CCTV cameras and equipment, ensuring efficient signal transmission.
5. Center Conductor: The central conductor is usually made of copper or copper-clad steel (CCS). Copper conductors offer better signal conductivity, while CCS provides a more cost-effective option.
6. Dual Insulation: RG59 Cable with Power features dual insulation: an inner dielectric insulation for the central conductor and an outer insulating jacket. These layers prevent signal leakage and maintain signal integrity.
7. Copper or Aluminum Shielding: The cable has a metallic shielding layer made of either copper or aluminum to protect against EMI and signal interference.
8. Power Conductors: In addition to the coaxial components, RG59 Cable with Power includes conductors for delivering electrical power. These conductors are typically color-coded, with red and black being common choices, and they are used to power the connected CCTV cameras.
9. Outer Insulating Jacket: The cable is encased in an outer insulating jacket, which provides physical protection and durability. This jacket is typically made of PVC (Polyvinyl Chloride) or similar materials.
10. Connectors: RG59 Cable with Power often comes with pre-attached connectors suitable for CCTV applications. BNC (Bayonet Neill–Concelman) connectors are commonly used for video connections, while power connectors like DC plugs or screw terminals are used for power delivery.
11. Available Lengths: The cable is available in various lengths to accommodate different installation needs, from short indoor runs to long outdoor installations.
12. Weather Resistance: Some RG59 Cable with Power is designed for outdoor use and is equipped with additional features such as UV resistance and moisture protection.
13. Color: The cable may come in different colors, with black and white being common choices. The color is often chosen based on aesthetic preferences or to match the installation environment.

When selecting an RG59 Cable with Power for a CCTV installation, consider the specific camera and equipment requirements, the length of cable needed, and whether the cable will be used indoors or outdoors. Proper installation and cable management are essential to ensure a reliable and efficient surveillance system
