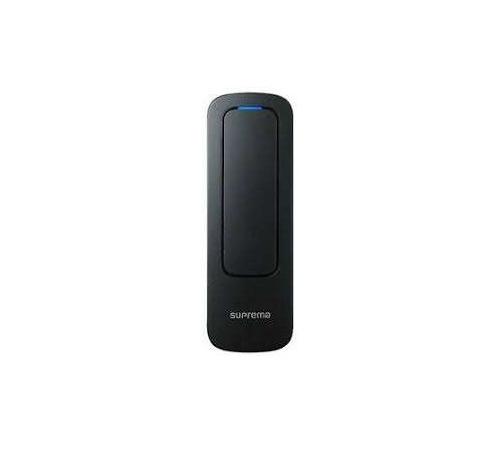

Suprema XP2-MDPB X-Pass 2 Outdoor Compact RFID Reader
X-Pass 2 is an outdoor compact RFID reader based on Suprema’s state-of-the-art RFID technology and multi-hardware platform. With the multi-form factor technology, mullion-type, gang box-type, and gang box keypad-type are all supported which provides perfect installation in various environments. X-Pass 2 also supports dual-frequency (125kHz / 13.56MHz) RFID technology and can read the mobile cards using NFC and BLE, the latest mobile communication technologies. Packed in a rugged IP65/IP67 rated dust & waterproof performance as well as IK08 rated vandal-proof structure, suitable for tough environment and outdoor installation.
Suprema XP2-MDPB X-Pass 2 Outdoor Compact RFID Reader Specifications
- RFID Support: EM (125kHz) and HID Proxy (125kHz)
- Reading Range: Up to 10cm (depending on the RFID card/tag type)
- Communication: RS-485, Wiegand, and Ethernet
- IP Rating: IP67 (Water and Dust Resistance)
- Tamper Switch: Yes
- Operating Temperature: -30°C to 65°C (-22°F to 149°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Humidity: 0% to 90% (non-condensing)
- LED Indicators: Power, Status, and Communication
- Supported OS: Windows, Linux, and Android
- Dimensions: Approximately 79mm x 185mm x 33mm (3.11″ x 7.28″ x 1.30″)
- Weight: Approximately 500g (1.10 lbs)
| RF Options | 125 kHz EM & 13.56 MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa |
| Mobile Card | NFC, BLE |
| Capacity | Users: 200,000 (1:1), 200,000 (1:N) Text Log: 1,000,000 |
| CPU | 1 GHz |
| Memory | Flash: 4 GB RAM: 64 MB |
| LED | Multicolor |
| Sound | Multitone Buzzer |
| Ethernet | 1 x 100M, Auto MDI/MDI-X |
| RS-485 | 1-Channel Master or Slave (Selectable) |
| Wiegand | 1-Channel Input or Output (Selectable) |
| TTL | 2 x Inputs |
| Relay | 1 x Relay |
| PoE | 802.3af |
| Power | 12/24 VDC |
| Operating Temperature | -31 to 149°F / -35 to 65°C |
| Operating Humidity | 0 to 95%, Non-Condensing |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 0 to 95%, Non-Condensing |
| IP Rating | IP67 |
| IK Rating | IK08 |
| Tamper Resistance | Yes |
| Certification | CE, FCC, KC, RoHS, REACH, WEEE, SIG |
| Dimensions (W x H x D) | 1.9 x 5.7 x 1? / 48 x 145 x 27 mm |
| Weight | Device: 5.1 oz / 144 g Bracket: 1 oz / 30 g (Including Washer and Bolt) |
